The Exagate Intelligent PWG2 PDU Series has been developed with over two decades of field-proven engineering expertise in global data center environments. This accumulated knowledge has been refined through continuous research and development.
The PWG2 Next-Gen PDUs, developed through extensive R&D, deliver high-specification performance with a focus on reliability, flexibility, and enhanced security.
The Exagate Intelligent PWG2 PDU Series is designed for critical system reliability, offering flexible configuration, real-time monitoring, and secure communication for efficient power management.
PDU units are manufactured with a 0 or 90 degrees Power Input (the default design is 90 degree), based on preference, to achieve an efficient and simple solution.
Ability to work up to 60 degrees celsius and measure the values stably.
PDU with relay output enables the active devices to be switched on and off remotely. The latching relay can remain in the open or closed position without requiring continuous power consumption.
V, A, kW, kVA, kVAR, kWh, F, PDU monitoring of power factor parameters, single phase or 3 phase PDU options.
Up to 100A single or three phase PDU options.

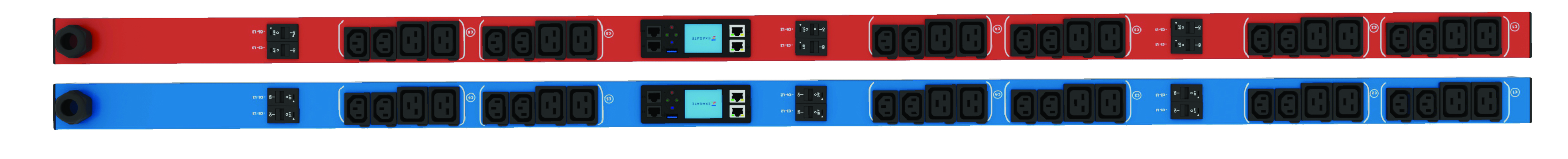

Black, Blue and Red coloured PDU options. Ask for other colour options.
Custom production possibility with different C13, C19, UK and NEMA socket options.

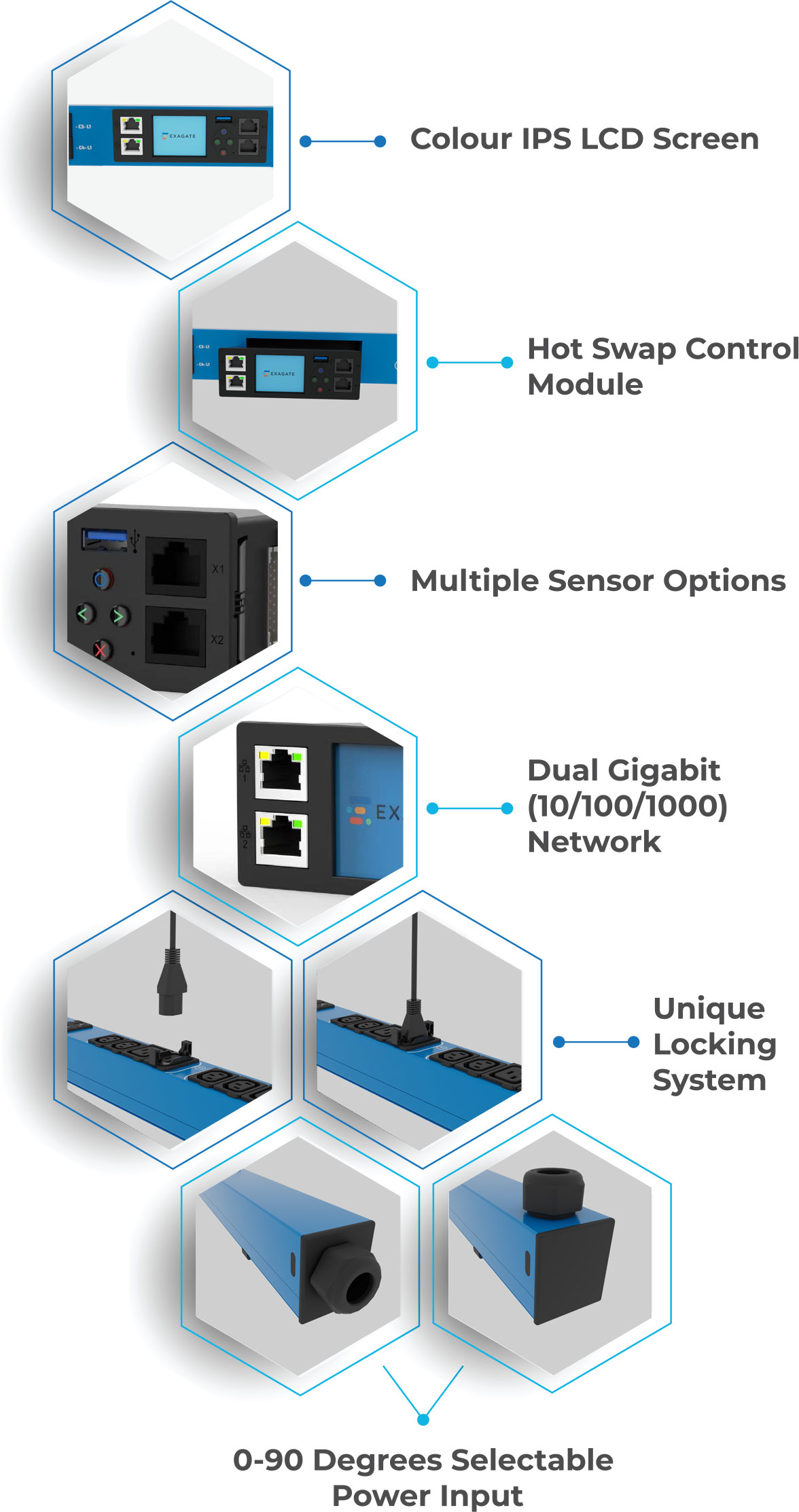

Colour IPS LCD screen with all kinds of parameters, alarms and information to monitor.

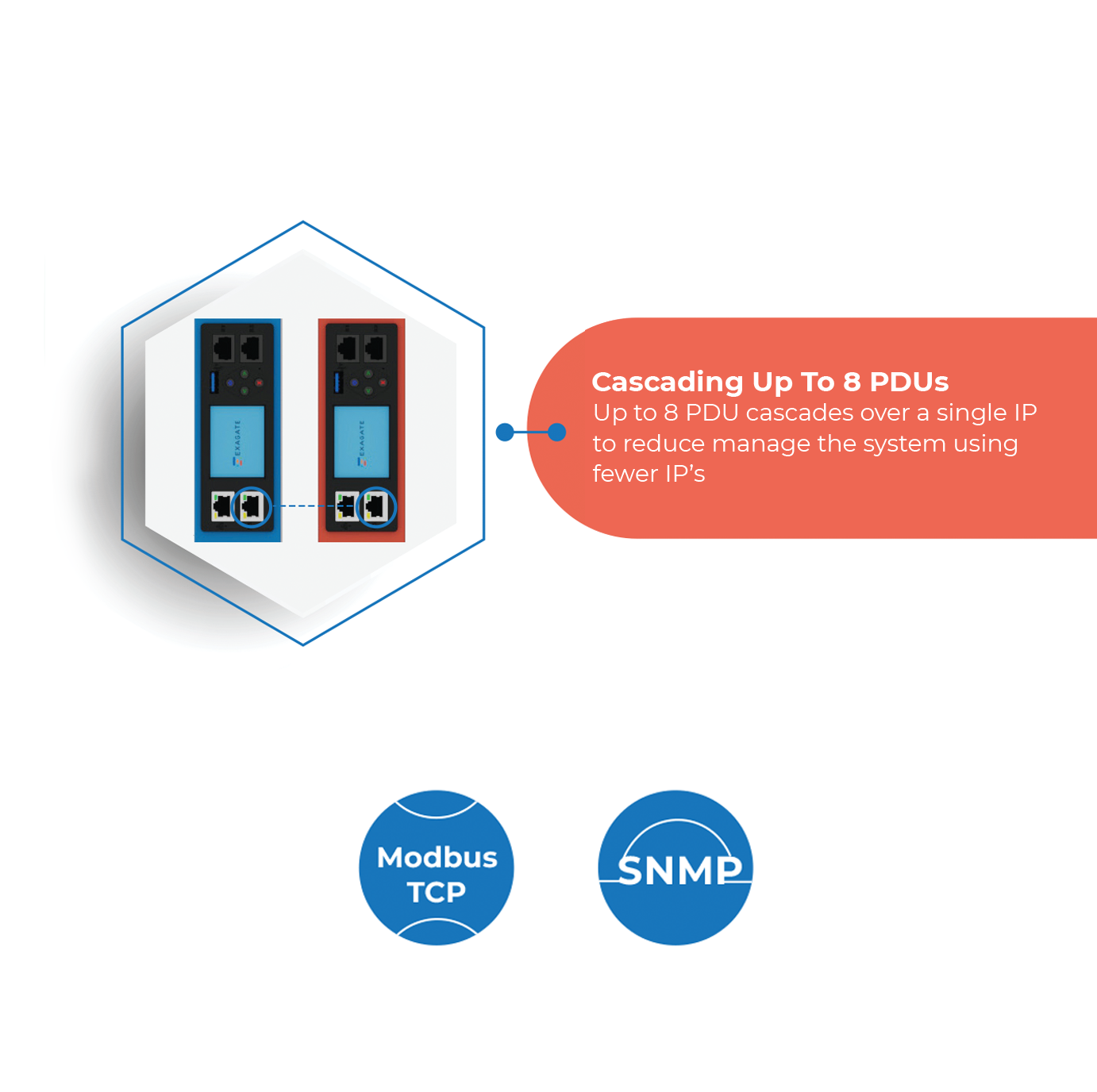

Up to 8 PDUs can cascade over a single IP address to reduce network traffic and manage the system using fewer IP addresses. The cascade option is provided using the ethernet port.
Integrated locking equipment ensures that the C13 & C19 sockets remain stable on the PDU.
Web interface is compatible with mobile devices and all of the data can be monitored via this integrated web interface.
Power distribution is eased by organizing outlets on simple patterns as branch circuits which are shown along the PDU.
LED signals provide information for switching, power and assigned critical levels as well as information about potential problematic sockets.
Fast and secure dual network connection for redundancy with Dual Gigabit (10/100/1000) Network.
In order to serve various purposes, there is one USB 3.0 port on the PDU.
Continuous residual current monitoring provides real-time data on current imbalances for electrical safety and fault detection.
Through power quality monitoring, live analysis for critical power quality, energy efficiency, and device status is offered.
Minimum, maximum, and average values are measured at the inlet and outlet.
Values that are measured across the time scale can be utilized to derive normal loads and failover ratings, as well as to make upgrade recommendations.
Harmonic events, voltage dips, swells, crest factor, power interruptions, and the power being fed to the PDU are all monitored.
| Model | Inline Meter | Basic PDU | Inlet Metering | Branch Circuit Metering | Outlet Metering | Outlet Switching |
|---|---|---|---|---|---|---|
| PWG2-90 | ✓ | |||||
| PWG2-91 | ✓ | |||||
| PWG2-92 | ✓ | ✓ | ||||
| PWG2-93 | ✓ | ✓ | ||||
| PWG2-94 | ✓ | ✓ | ✓ | ✓ | ||
| PWG2-96 | ✓ |
