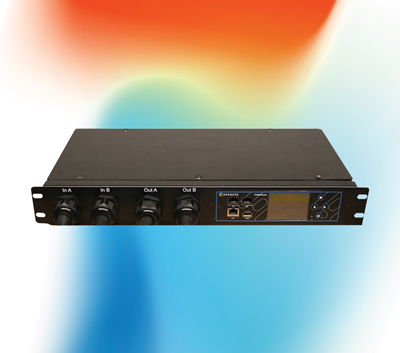

Exagate PWG2 Inline Meter Series simplifies the monitoring of power usage and environmental conditions within a Data Center while enabling the tracking of power consumption on dedicated circuits.
This solution eliminates the need for the removal or re-cabling of IT equipment. Instead, the inline meter can be directly wired into existing circuits, providing real-time remote power monitoring with an accuracy of +/- 0.5%.
Additionally, the meters are equipped with Smart Sensors, facilitating a seamless and rapid installation and deployment process, minimizing disruptions to operations.

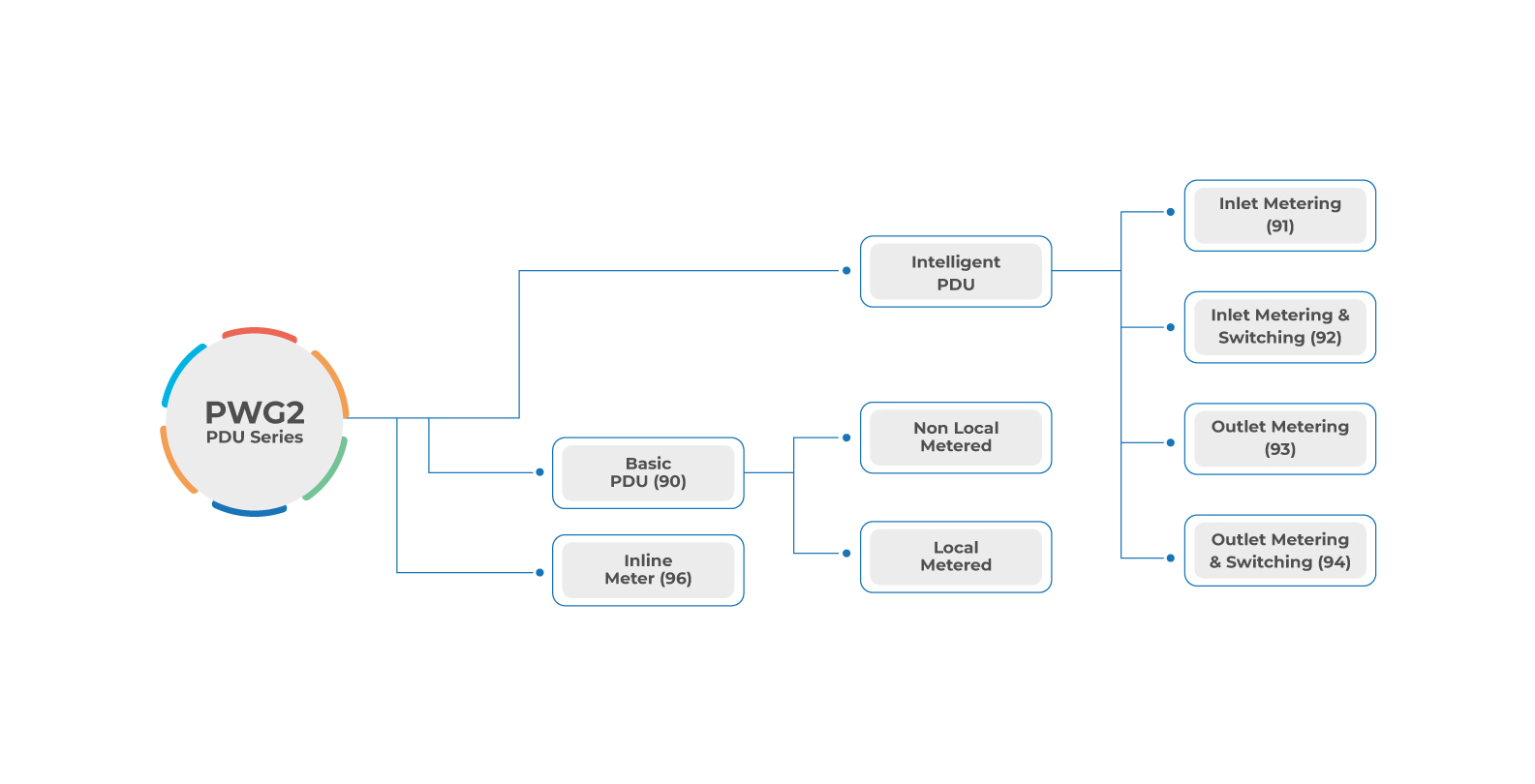

PWG2 Inline Meter Series product family extends to include a comprehensive range of products, enabling the comprehensive monitoring of an entire energy infrastructure within a Data Center. This solution utilizes a user-friendly interface, offers environment monitoring sensor options, and provides the flexibility of optional advanced central management software.
Our PWG2 Inline Meter Series is designed for vital system reliability, offering top-tier flexibility, real-time monitoring, and secure communication for easy power management.
High precision measurement for accurate power tracking and billing.
Comprehensive power quality analysis for optimal equipment performance.
Monitors harmonic distortion up to 21st harmonic for power quality insights.
Available in single or three phase configurations up to 100A.
Unique locking system ensures secure connections.
Organize outlets into branch circuits for simplified power distribution.
Continuous monitoring for electrical safety and fault detection.
Replace modules without downtime for continuous operation.
Fast and secure dual network connection (10/100/1000) for redundancy.
Industry standard protocols for seamless integration.
| Model | Inline Meter | Basic PDU | Inlet Metering | Branch Circuit Metering | Outlet Metering | Outlet Switching |
|---|---|---|---|---|---|---|
| PWG2-90 | ✓ | |||||
| PWG2-91 | ✓ | ✓ | ||||
| PWG2-92 | ✓ | ✓ | ||||
| PWG2-93 | ✓ | ✓ | ||||
| PWG2-94 | ✓ | ✓ | ✓ | |||
| PWG2-96 | ✓ | ✓ | ✓ | ✓ |
